Best way to make use of the lightbox + center images

Solved by pamtbaau View solution

Started by AquaL1te 5 years ago · 2 replies · 1352 views
5 years ago

Hi,

The lightbox is really cool and simple to use. But I noticed a few minor flaws in formatting. I solved that with a custom template. But I wonder if this can be done better. Here is my website with the custom template I use now.

I'll start with the minor flaws I see when using the following:

MARKDOWN
[center]
![Kleding](kleding.jpg?lightbox&resize=300)
![Podcast](podcast.jpg?lightbox&resize=300)
![Meeting](orientatie-meeting.jpg?lightbox&resize=300)
![ZDay](zday.jpg?lightbox&resize=300)
![Mengpaneel](mengpaneel.jpg?lightbox&resize=300)
![Blender](blender.jpg?lightbox&resize=300)
[/center]

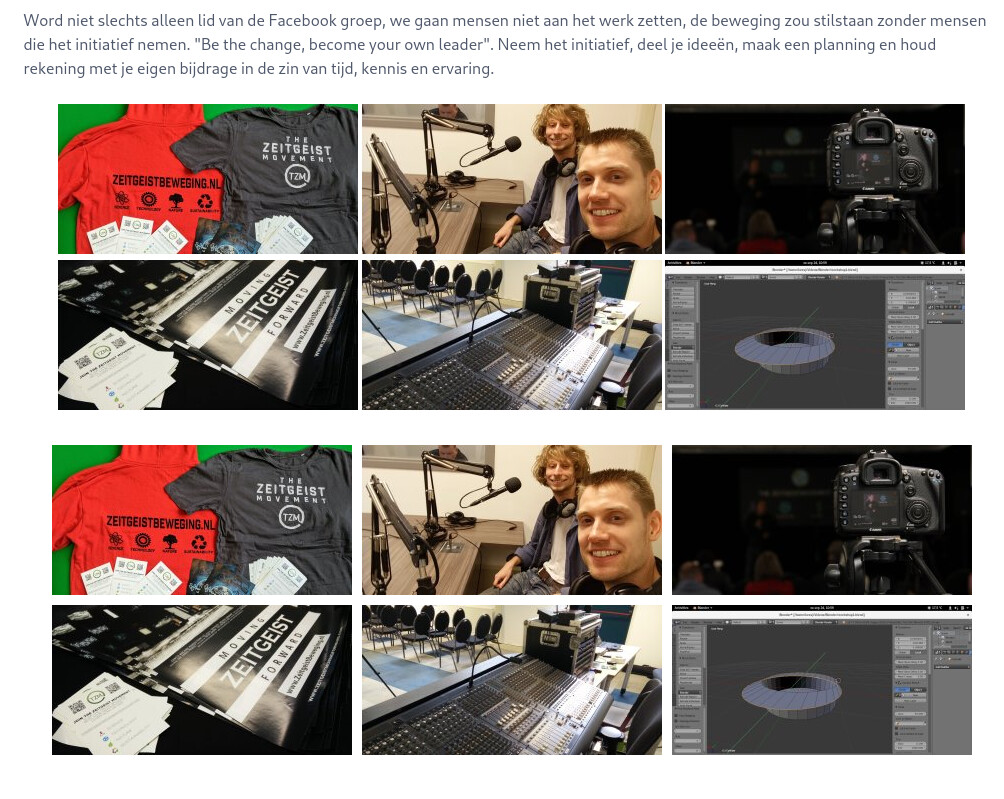

This generates the following output, in the screenshot below the top 6 images are generated by the code above, the 6 pictures below that are made by my custom template:
Screenshot from 2021-01-29 08-08-13|628x500, 100%

As you can see, the spacing between the top 6 images images are not even. Why this happens is unclear to me. The center shortcode has no effect on this in a positive or negative way.

So I created a custom template which generates the bottom 6 images:

TWIG
{% extends 'partials/base.html.twig' %}

{% block content %}
    {{ page.content|raw }}
    <section id="custom-gallery" class="{{ grid_size }}">
        <div class="images">
        {% for image in page.media.images %}
        <a rel="lightbox" href="{{ image.url|e }}">
          <img src="{{ image.cropResize(300).url|e }}" alt="{{ image.basename|e|title }}"/>
        </a>
        {% endfor %}
        </div>
    </section>
{% endblock %}

Where I also added this CSS:

CSS
/* custom-gallery template */
#custom-gallery .images {
    display: flex;
    flex-wrap: wrap;
    justify-content: center;
}
#custom-gallery .images a {
    display: inline-block;
}
#custom-gallery .images img {
    display: block;
    margin: 5px;
}

Adding the CSS section custom-gallery fixes the formatting issues. So this leaves me with the following questions:

  • Is this the "Grav way" of solving this formatting issue? I could've also added the div in the markdown of course and add the rest of the HTML. But I thought a template would be better since it would keep maintenance in a central place.
  • Is there a better way to place a div in markdown?
  • Are there improvements for my template? E.g. am I missing some tricks to simplify this?
  • Any other improvement suggestions?
5 years ago Solution

@AquaL1te

  • Why?
    From stackoverflow:

    The image is display: inline so it is treated like a character and sits on the baseline. The gap is caused by the space provided for the descender (which you find on letters like j, g, y and p).
    Adjust the vertical-align with CSS: img{vertical-align: bottom}

  • 'Grav way'
    I don't think there is a best 'Grav way'. Grav often offers multiple ways...
    If the images are part of the content, you have no other choice than adding code (HTML, shortcode, Twig) to Markdown. Else, I would use a template (thats where templates are for).
  • Improvements
    Not sure if it is an improvement... But an alternative to generating image elements could be:
    TWIG
    {{ image.cropResize(300).html('', image.basename|title) | raw }}

  • Using Twig inside page.
    Template 'partials/centered-images.html.twig':

    TWIG
    <section id="custom-gallery" class="{{ grid_size }}">
    <div class="images">
    {% for image in page.media.images %}
    <a rel="lightbox" href="{{ image.url|e }}">
      {{ image.cropResize(300).html('', image.basename|title) | raw }}
    </a>
    {% endfor %}
    </div>
    </section>


    Page '03.images/default.md'

    TWIG
    ---
    title: Images
    process:
    twig: true
    ---
    # Mardown before

    {% include 'partials/centered-images.html.twig' %}

    # Markdown after


Note:
Don't change/add templates inside a installed theme, but instead in an inherited theme. If not, all changes will be lost when a new version of the theme gets installed.

👍 1
last edited 01/29/21 by pamtbaau
5 years ago

Thanks! I'm using partials more now. I was using specific templates for that, which is not very flexible. Thanks for the reminder that partials exist and can easily be used.
